Cam Switches - Changeover & Control

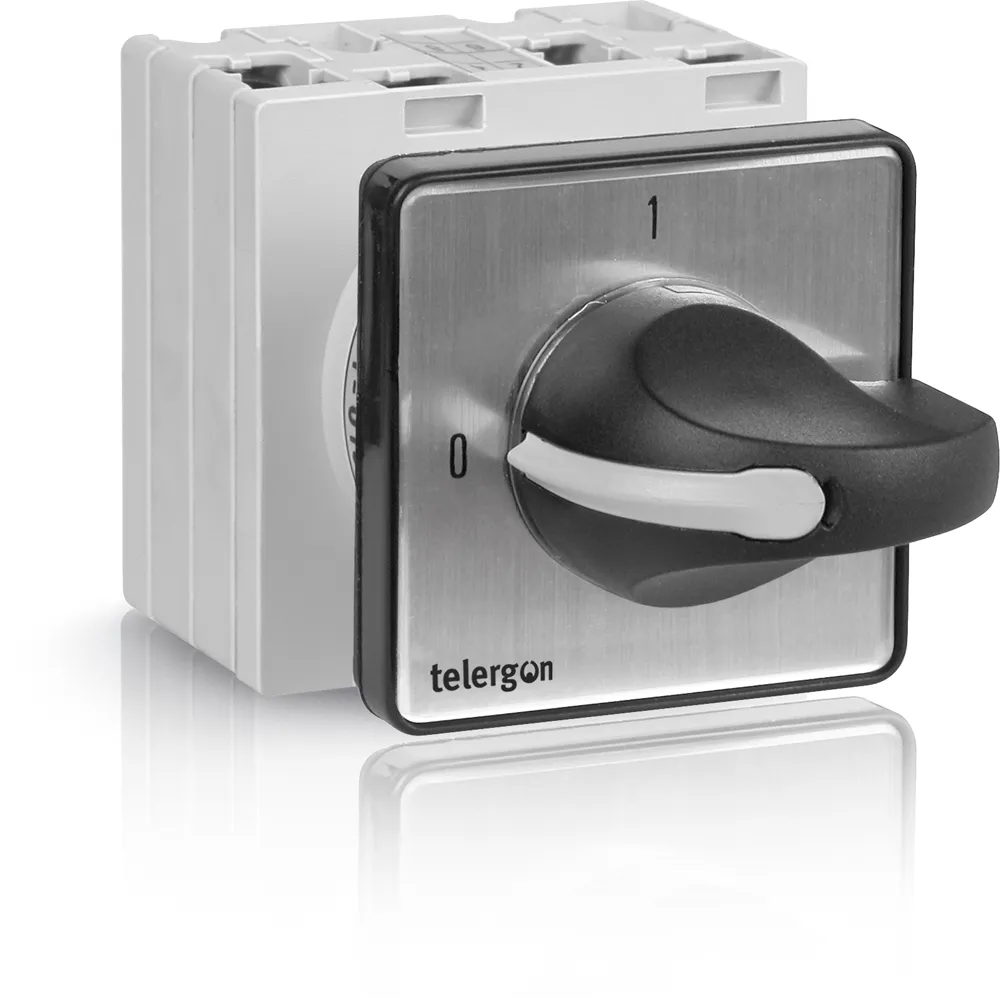

TF-002500101E1N1
| Rated Current (A) | 25 |
|---|---|
| Rated Voltage | 600Vac |
| Poles | 2P |
| Configuration | Reversing |
Description
TF Series cam switch, 25A, 600 VAC, 2P, 3-position (1-0-2), Reversing, 2-pole reversing circuit with center OFF; alternate reversing contact paths selected in positions 1 and 2, panel mount, compact Black/Gray screw fixing handle, ANSI/UL 508, IEC 60947-3
Electrical Characteristics
ELECTRICAL DATA UL
| UL Standard | ANSI/UL 508 |
|---|---|
| UL File Document | E123623 |
| UL Rated Insulation Voltage (V) | 600VAC |
| UL Rated Thermal Current (A) | 25 |
| UL Resistive Load Rating (A) | 25 |
| HP (FLA) - 3PH @ 240VAC | 7.5 |
| HP (FLA) - 3PH @ 480VAC | 12 |
| HP (FLA) - 3PH @ 600VAC | 15 |
| UL Operating Temperature (°C) | -5°C to +40°C |
| UL Operating Temperature (°F) | 23F to +104F |
ELECTRICAL DATA IEC
| Standard | IEC 60947-3 |
|---|---|
| CAT 1 / Voltage (V) | 415V |
| CAT 1 / Category of operation | AC-23A |
| CAT 1 / Rated current Ie (A) | 32 A |
| CAT 2 / Voltage (V) | 415V |
| CAT 2 / Category of operation | AC-22A |
| CAT 2 / Rated current Ie (A) | 32 A |
| CAT 3 / Voltage (V) | 415V |
| CAT 3 / Category of operation | AC-21A |
| CAT 3 / Rated current Ie (A) | 32 A |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Screw type (M) | M4 |
|---|
CONNECTION CAPACITY UL
| Wire range flange (AWG) | #14 - #10 |
|---|
Environmental Ratings
| Operating Temperature Range | -5°C to +40°C |
|---|---|
| Storage Temperature Range | -25ºC a 55ºC |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 50 |
|---|---|
| Height (mm) | 50 |
| Depth (mm) | 58 |
DIMENSIONS (inch)
| Width (in) | 1.97 |
|---|---|
| Height (in) | 1.97 |
| Depth (in) | 2.28 |
