Cam Switches - Disconnect
T-0020000010ENRD
| Rated Current (A) | 200 |
|---|---|
| Rated Voltage | 600Vac |
| Poles | 1P |
| Configuration | ON-OFF |
Description

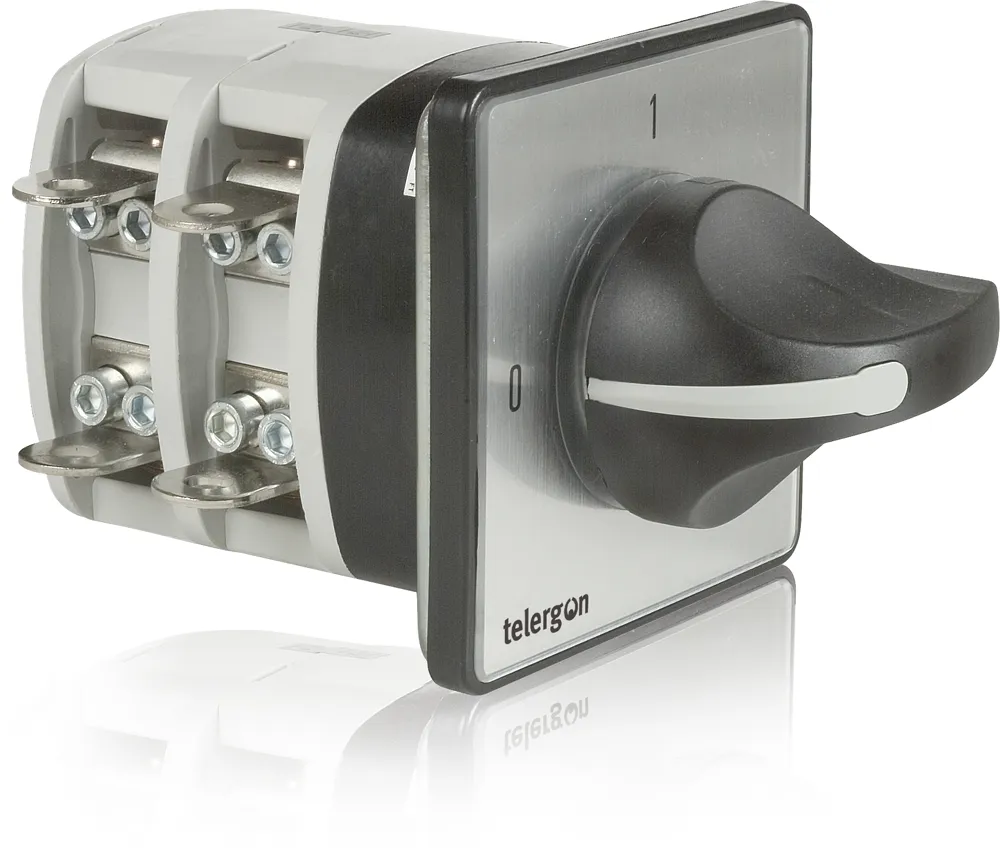

T Series cam switch, 200A, 600 VAC, 1-pole, 2-position (0-1), ON-OFF, 1-pole maintained ON-OFF; contact open at 0 and closed at 1, panel mount, Red/Yellow handle, ANSI/UL 508, IEC 60947-3
Electrical Characteristics
ELECTRICAL DATA UL
| UL Standard | ANSI/UL 508 |
|---|---|
| UL File Document | E123623 |
| Frame Size | 3 |
| UL Rated Insulation Voltage (V) | 600VAC |
| UL Rated Thermal Current (A) | 200 |
| UL Resistive Load Rating (A) | 200 |
| HP (FLA) - 3PH @ 240VAC | 60 |
| HP (FLA) - 3PH @ 480VAC | 75 |
| HP (FLA) - 3PH @ 600VAC | 60 |
| UL Operating Temperature (°C) | -5°C to +40°C |
| UL Operating Temperature (°F) | 23F to +104F |
ELECTRICAL DATA IEC
| Standard | IEC 60947-3 |
|---|---|
| CAT 1 / Voltage (V) | 415V |
| CAT 1 / Category of operation | AC-23A |
| CAT 1 / Rated current Ie (A) | 200 A |
| CAT 2 / Voltage (V) | 415V |
| CAT 2 / Category of operation | AC-22A |
| CAT 2 / Rated current Ie (A) | 200 A |
| CAT 3 / Voltage (V) | 415V |
| CAT 3 / Category of operation | AC-21A |
| CAT 3 / Rated current Ie (A) | 200 A |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Tightening Torque +5%. -10% (nM) | 21.6 |
|---|---|
| Screw type (M) | M6 |
CONNECTION CAPACITY UL
| Wire range flange (AWG) | 300 kcmil |
|---|
Environmental Ratings
| Operating Temperature Range | -5°C to +40°C |
|---|---|
| Storage Temperature Range | -25ºC a 55ºC |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 132 |
|---|---|
| Height (mm) | 132 |
| Depth (mm) | 95 |
DIMENSIONS (inch)
| Width (in) | 5.2 |
|---|---|
| Height (in) | 5.2 |
| Depth (in) | 3.74 |
