Cam Switches - Changeover & Control
T-0006300301E1N1
| Rated Current (A) | 63 |
|---|---|
| Rated Voltage | 600Vac |
| Configuration | Star-Delta w/ Aux |
Description

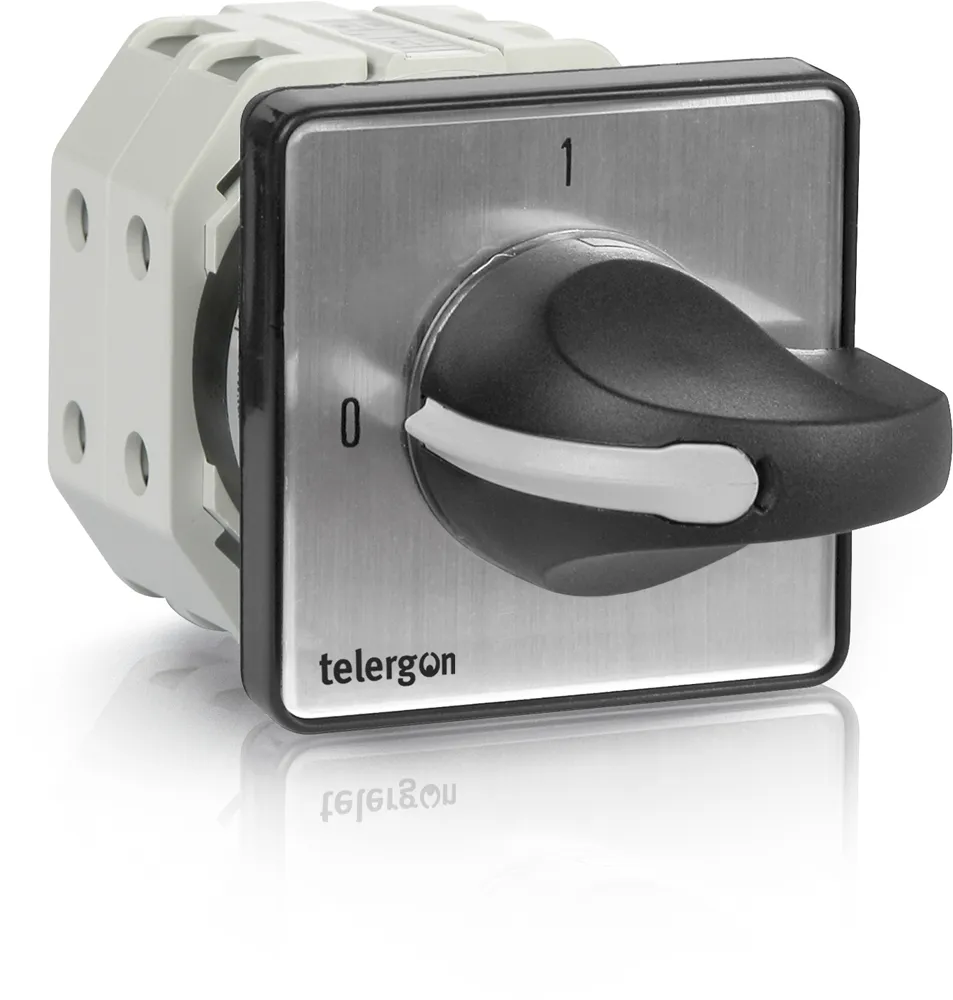

T Series cam switch, 63A, 600 VAC, 3-position (0-Y-Δ), Star-Delta with Auxiliary Contact, star-delta motor starting with auxiliary contact closed in position 0, compact Black/Gray screw fixing handle, UL 60947-1 / UL 60947-4-1, IEC 60947-3
Electrical Characteristics
ELECTRICAL DATA UL
| UL Standard | UL 60947-1 & UL 60947-4-1 |
|---|---|
| UL File Document | E123623 |
| Frame Size | 2 |
| UL Rated Insulation Voltage (V) | 600VAC |
| UL Rated Thermal Current (A) | 63 |
| UL Resistive Load Rating (A) | 63 |
| HP (FLA) - 3PH @ 240VAC | 20 |
| HP (FLA) - 3PH @ 480VAC | 40 |
| HP (FLA) - 3PH @ 600VAC | 40 |
| UL Operating Temperature (°C) | -5°C to +40°C |
| UL Operating Temperature (°F) | 23F to +104F |
ELECTRICAL DATA IEC
| Standard | IEC 60947-3 |
|---|---|
| CAT 1 / Voltage (V) | 415V |
| CAT 1 / Category of operation | AC-23A |
| CAT 1 / Rated current Ie (A) | 63 A |
| CAT 2 / Voltage (V) | 415V |
| CAT 2 / Category of operation | AC-22A |
| CAT 2 / Rated current Ie (A) | 80 A |
| CAT 3 / Voltage (V) | 415V |
| CAT 3 / Category of operation | AC-21A |
| CAT 3 / Rated current Ie (A) | 80 A |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Tightening Torque +5%. -10% (nM) | 2.8 |
|---|---|
| Screw type (M) | M5 |
CONNECTION CAPACITY UL
| Wire range flange (AWG) | #14 - #4 |
|---|
Environmental Ratings
| Operating Temperature Range | -5°C to +40°C |
|---|---|
| Storage Temperature Range | -25ºC a 55ºC |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 94 |
|---|---|
| Height (mm) | 94 |
| Depth (mm) | 142.5 |
| Weight (Kg) | 1.033 |
DIMENSIONS (inch)
| Width (in) | 3.7 |
|---|---|
| Height (in) | 3.7 |
| Depth (in) | 5.61 |
| Weight (lbs) | 2.28 |
