Cam Switches - Changeover & Control
T-0001200310E1N1
| Rated Current (A) | 12 |
|---|---|
| Rated Voltage | 300Vac |
| Configuration | Star-Delta |
Description

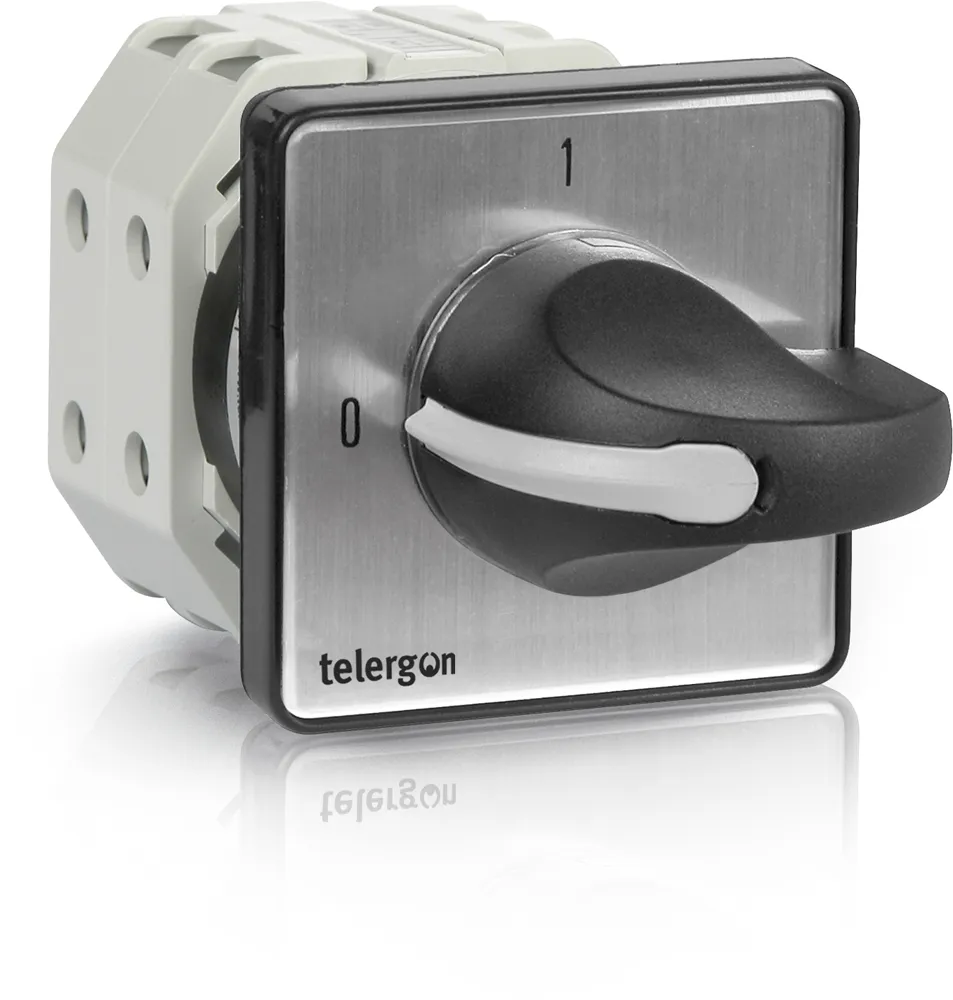

T Series cam switch, 12A, 300 VAC, 3-position (380-0-220), Star-Delta Voltage Selector, star-delta voltage selector; 380 → 0 → 220, compact Black/Gray screw fixing handle, ANSI/UL 508, IEC 60947-3
Electrical Characteristics
ELECTRICAL DATA UL
| UL Standard | ANSI/UL 508 |
|---|---|
| UL File Document | E123623 |
| UL Rated Insulation Voltage (V) | 300Vac |
| UL Rated Thermal Current (A) | 12 |
| UL Resistive Load Rating (A) | 12 |
| HP (FLA) - 3PH @ 240VAC | 2 |
| UL Operating Temperature (°C) | -5°C to +40°C |
| UL Operating Temperature (°F) | 23F to +104F |
ELECTRICAL DATA IEC
| Standard | IEC 60947-3 |
|---|---|
| CAT 1 / Voltage (V) | 415V |
| CAT 1 / Category of operation | AC-23A |
| CAT 1 / Rated current Ie (A) | 0.416666666667 |
| CAT 2 / Voltage (V) | 415V |
| CAT 2 / Category of operation | AC-22A |
| CAT 2 / Rated current Ie (A) | 16 A |
| CAT 3 / Voltage (V) | 415V |
| CAT 3 / Category of operation | AC-21A |
| CAT 3 / Rated current Ie (A) | 16 A |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Tightening Torque +5%. -10% (nM) | 1.0 |
|---|---|
| Screw type (M) | M4 |
CONNECTION CAPACITY UL
| Wire range flange (AWG) | #14 - #12 |
|---|
Environmental Ratings
| Operating Temperature Range | -5°C to +40°C |
|---|---|
| Storage Temperature Range | -25ºC a 55ºC |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 50 |
|---|---|
| Height (mm) | 50 |
| Depth (mm) | 72 |
| Weight (Kg) | 0.203 |
DIMENSIONS (inch)
| Width (in) | 1.97 |
|---|---|
| Height (in) | 1.97 |
| Depth (in) | 2.83 |
| Weight (lbs) | 0.45 |
