DC Disconnect Switches

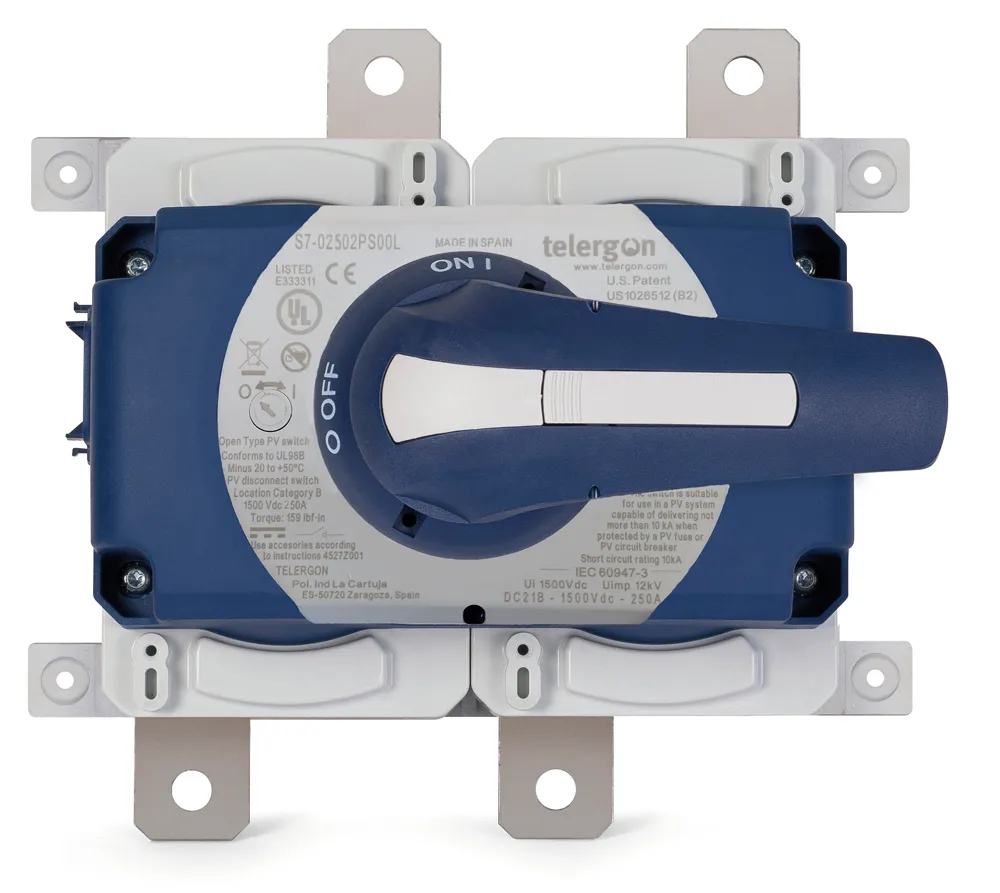

S7-02502PSL0L
| Rated Current (A) | 250 |
|---|---|
| Rated Voltage | 1500VDC |
| Poles | 2P |
| Configuration | ON-OFF |
Description
S7 DC rotary disconnect, 250A, 1500 VDC, 2-pole, side operation, panel mount, 10 kA SCCR, UL 98B, IEC 60947-3.
Electrical Characteristics
ELECTRICAL DATA UL
| UL Standard | UL98B |
|---|---|
| UL File Document | E333311 |
| Frame Size | 1 |
| UL Rated Insulation Voltage (V) | 1500 Vdc |
| UL Resistive Load Rating (A) | 250 |
| UL Operating Temperature (°C) | -20°C to +70°C |
| UL Operating Temperature (°F) | -4°F to +158°F |
ELECTRICAL DATA IEC
| Standard | IEC 60947-3 |
|---|
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Busbar (min. thickness / Width) (mm) | 1x4 / 30 |
|---|---|
| Busbar (Max. Width) (mm) | 30 |
| Tightening Torque +5%. -10% (nM) | 18 |
| Screw type (M) | M10 |
CONNECTION CAPACITY UL
| Busbar (min. thickness / Width) (in) | 1x13/64 / 1-1/4 |
|---|
Environmental Ratings
| Operating Temperature Range | -20°C to +70°C |
|---|
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 190 |
|---|---|
| Height (mm) | 212 |
| Depth (mm) | 150 |
| Weight (Kg) | 3 |
DIMENSIONS (inch)
| Width (in) | 7.48 |
|---|---|
| Height (in) | 8.35 |
| Depth (in) | 5.91 |
| Weight (lbs) | 6.62 |
