DC Disconnect Switches
S6R0320CBS00L
| Rated Current (A) | 320 |
|---|---|
| Rated Voltage | 1500VDC |
| Poles | 2P |
| Configuration | ON-OFF |
Description

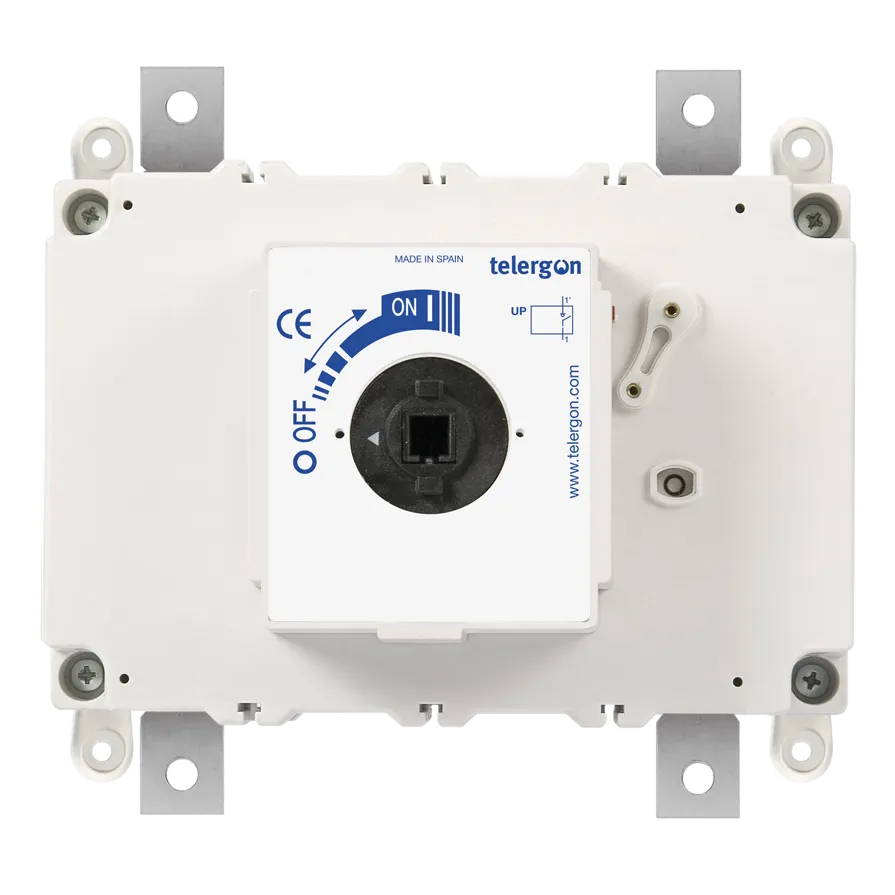

S6R DC rotary disconnect, 320A, 1500 VDC, 2-pole, front operation, panel mount, 10 kA SCCR, UL 98B.
Electrical Characteristics
ELECTRICAL DATA UL
| UL Standard | UL98B |
|---|---|
| UL File Document | E333311 |
| Frame Size | 1 |
| UL Rated Insulation Voltage (V) | 1500 Vdc |
| UL Resistive Load Rating (A) | 320 |
| UL Operating Temperature (°C) | -20°C to +50°C |
| UL Operating Temperature (°F) | -4F to +122F |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Screw type (M) | M12 |
|---|
CONNECTION CAPACITY UL
| Busbar (min. thickness / Width) (in) | 2x 5/32 |
|---|
Environmental Ratings
| IP Rating | IP65 |
|---|
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 225 |
|---|---|
| Height (mm) | 265 |
| Depth (mm) | 172 |
| Weight (Kg) | 5 |
DIMENSIONS (inch)
| Width (in) | 8.86 |
|---|---|
| Height (in) | 10.43 |
| Depth (in) | 6.77 |
| Weight (lbs) | 11.03 |
