AC Disconnect Switches

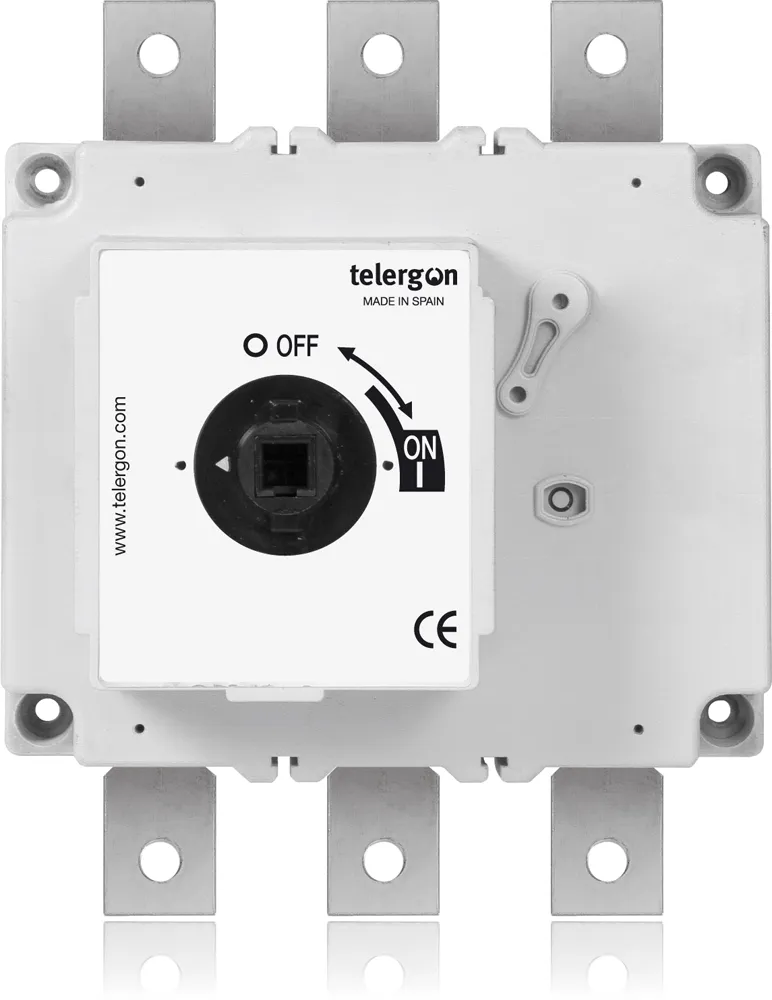

S6-06003PS00L
| Rated Current (A) | 600 |
|---|---|
| Rated Voltage | 480VAC |
| Poles | 3P |
| Configuration | ON-OFF |
Description
S6 non-fusible AC rotary disconnect, 600A, 480 VAC, 3-pole, front operation, panel mount, 10 kA SCCR, UL 98, CSA C22.2 No. 4, IEC 60947-3.
Electrical Characteristics
ELECTRICAL DATA UL
| UL Standard | UL98 |
|---|---|
| UL File Document | E363652 |
| Frame Size | 2 |
| UL Rated Insulation Voltage (V) | 480 Vac |
| UL Resistive Load Rating (A) | 600 |
| UL Operating Temperature (°C) | -20°C to +50°C |
| UL Operating Temperature (°F) | -4F to +122F |
ELECTRICAL DATA IEC
| Standard | IEC 60947-3 |
|---|---|
| CAT 1 / Voltage (V) | 400V |
| CAT 1 / Category of operation | AC-23A |
| CAT 1 / Rated current Ie (A) | 800 A |
| CAT 2 / Voltage (V) | 690V |
| CAT 2 / Category of operation | AC-21A |
| CAT 2 / Rated current Ie (A) | 630 A |
| CAT 3 / Voltage (V) | 800V |
| CAT 3 / Category of operation | AC-21B |
| CAT 3 / Rated current Ie (A) | 500 A |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Screw type (M) | M10 |
|---|
CONNECTION CAPACITY UL
| Busbar (min. thickness / Width) (in) | 5/35MM |
|---|---|
| Wire range flange (AWG) | 2x500 kcmil |
Environmental Ratings
| Operating Temperature Range | -20°C to +50°C |
|---|---|
| Storage Temperature Range | -40°C to +75°C |
| IP Rating | IP65 |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 236 |
|---|---|
| Height (mm) | 274 |
| Depth (mm) | 131.5 |
| Weight (Kg) | 4.76 |
DIMENSIONS (inch)
| Width (in) | 9.29 |
|---|---|
| Height (in) | 10.79 |
| Depth (in) | 5.18 |
| Weight (lbs) | 10.5 |
Product Resources
Document
File size
File format
Download
