DC Disconnect Switches

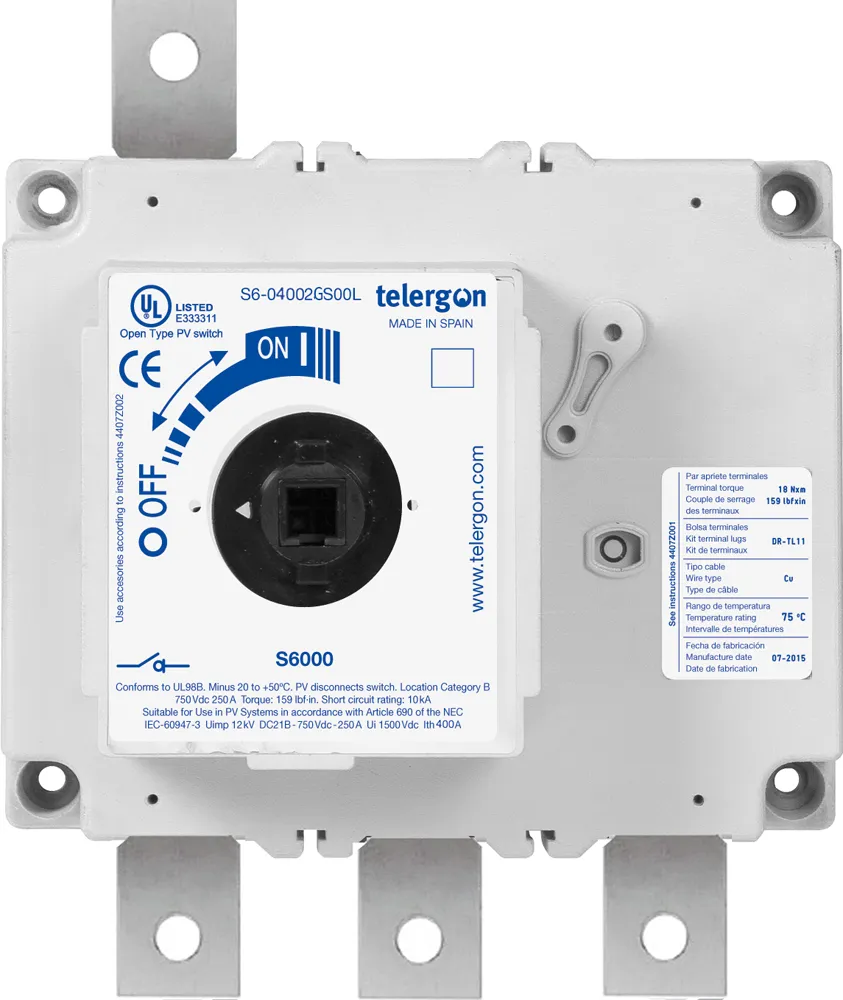

S6-04002GS00L
| Rated Current (A) | 400 |
|---|---|
| Rated Voltage | 750VDC |
| Poles | 2P |
| Configuration | ON-OFF |
Description
S6 DC rotary disconnect, 400A, 750 VDC, 2-pole, front operation, panel mount, 10 kA SCCR, UL 98B.
Electrical Characteristics
ELECTRICAL DATA UL
| UL Standard | UL98B |
|---|---|
| UL File Document | E333311 |
| Frame Size | 2 |
| UL Rated Insulation Voltage (V) | 750 Vdc |
| UL Resistive Load Rating (A) | 400 |
| UL Operating Temperature (°C) | -20°C to +50°C |
| UL Operating Temperature (°F) | -4F to +122F |
ELECTRICAL DATA IEC
| Standard | IEC 60947-3 |
|---|---|
| CAT 1 / Voltage (V) | 750V DC |
| CAT 1 / Category of operation | DC-21B |
| CAT 1 / Rated current Ie (A) | 400 A |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Screw type (M) | M10 |
|---|
CONNECTION CAPACITY UL
| Busbar (min. thickness / Width) (in) | 5/35MM |
|---|---|
| Wire range flange (AWG) | 2x300 -2x350 |
Environmental Ratings
| IP Rating | IP65 |
|---|
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 236 |
|---|---|
| Height (mm) | 274 |
| Depth (mm) | 131.5 |
| Weight (Kg) | 4.76 |
DIMENSIONS (inch)
| Width (in) | 9.29 |
|---|---|
| Height (in) | 10.79 |
| Depth (in) | 5.18 |
| Weight (lbs) | 10.5 |
