AC Disconnect Switches

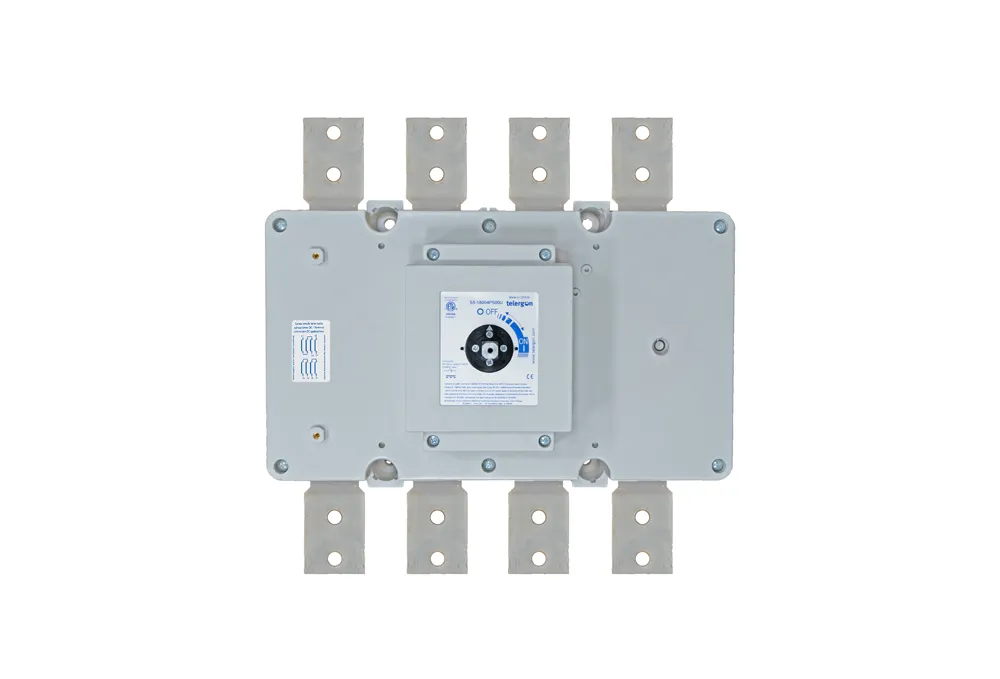

S5-18004PS00U
| Rated Current (A) | 1200 |
|---|---|
| Rated Voltage | 600Vac |
| Poles | 4P |
| Configuration | ON-OFF |
Description
S5 Non-fusible AC rotary disconnect, 1200A, 600 VAC, 4-pole, front operation, panel mount, 10 kA SCCR, UL 98, CSA C22.2 No. 4, IEC 60947-3.
Electrical Characteristics
ELECTRICAL DATA UL
| UL Standard | UL98 |
|---|---|
| UL File Document | E363652 |
| Frame Size | 4 |
| UL Rated Insulation Voltage (V) | 600 VAC |
| UL Resistive Load Rating (A) | 1200 |
| UL Operating Temperature (°C) | -20°C to +50°C |
| UL Operating Temperature (°F) | -4F to +122F |
ELECTRICAL DATA IEC
| Standard | IEC 60947-3 |
|---|
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Busbar (min. thickness / Width) (mm) | 2x7 / 80 |
|---|---|
| Busbar (Max. Width) (mm) | 80 |
CONNECTION CAPACITY UL
| Busbar (min. thickness / Width) (in) | 2x0.28/3.15 |
|---|
Environmental Ratings
| Operating Temperature Range | -20°C to +50°C |
|---|---|
| Storage Temperature Range | -40°C to +75°C |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 441 |
|---|---|
| Height (mm) | 545.5 |
| Depth (mm) | 162 |
| Weight (Kg) | 20.8 |
DIMENSIONS (inch)
| Width (in) | 17.36 |
|---|---|
| Height (in) | 21.48 |
| Depth (in) | 6.38 |
| Weight (lbs) | 45.86 |
