AC Compact Disconnect Switches
S3-00803P4EP
| Rated Current (A) | 80 |
|---|---|
| Rated Voltage | 600Vac |
| Poles | 3P |
| Configuration | ON-OFF |
Description

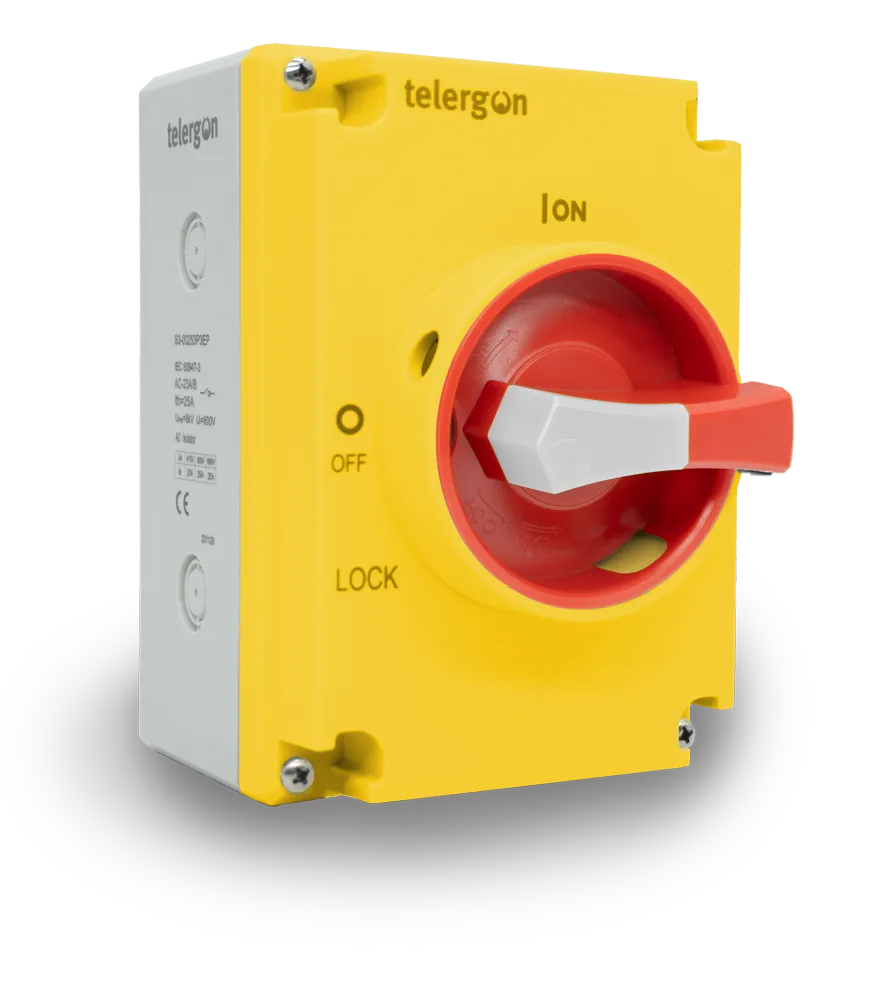

S3 Series enclosed compact rotary disconnect, 80A, 600 VAC, 3P, ON-OFF, UL 746C f1 outdoor-rated polycarbonate enclosure, padlockable Red/Yellow handle, UL 60947-1 / UL 60947-4-1, IEC 60947-3.
Electrical Characteristics
ELECTRICAL DATA UL
| UL Standard | UL 60947-1 & UL 60947-4-1 |
|---|---|
| UL File Document | E123623 |
| Frame Size | B |
| UL Rated Insulation Voltage (V) | 600 VAC |
| UL Rated Thermal Current (A) | 80 |
| UL Resistive Load Rating (A) | 80 |
| HP (FLA) - 1PH @ 115VAC | 2 (24) |
| HP (FLA) - 1PH @ 240VAC | 5 (28) |
| HP (FLA) - 3PH @ 240VAC | 10 (28) |
| HP (FLA) - 3PH @ 480VAC | 20 (27) |
| HP (FLA) - 3PH @ 600VAC | 25 (27) |
| UL Operating Temperature (°C) | -5°C to +40°C |
| UL Operating Temperature (°F) | 23F to +104F |
ELECTRICAL DATA IEC
| Standard | IEC 60947-3 |
|---|---|
| CAT 1 / Voltage (V) | 415V |
| CAT 1 / Category of operation | AC-23A |
| CAT 1 / Rated current Ie (A) | 80 A |
| Protection degree | Type 4/4X |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Tightening Torque +5%. -10% (nM) | 2.5-5 |
|---|
CONNECTION CAPACITY UL
| Wire range flange (AWG) | #2 - #14 |
|---|
Environmental Ratings
| Operating Temperature Range | -5°C to +40°C |
|---|---|
| Storage Temperature Range | -25ºC a 55ºC |
| IP Rating | IP66 |
| NEMA / UL Type Rating | Type 4/4X |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 120 |
|---|---|
| Height (mm) | 200 |
| Depth (mm) | 118 |
| Weight (Kg) | 0.248 |
DIMENSIONS (inch)
| Width (in) | 4.72 |
|---|---|
| Height (in) | 7.87 |
| Depth (in) | 4.65 |
| Weight (lbs) | 0.55 |
