AC Compact Disconnect Switches
S3-00163P6DC
| Rated Current (A) | 16 |
|---|---|
| Rated Voltage | 600Vac |
| Poles | 3P |
| Configuration | ON-OFF |
Description

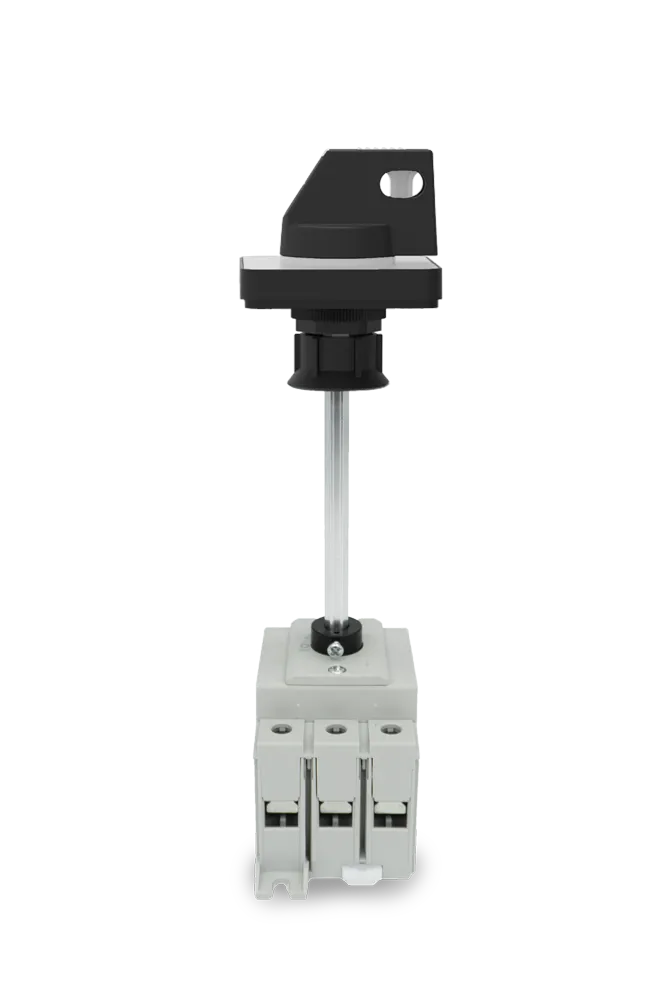

S3 Series compact rotary disconnect, 16A, 600 VAC, 3P, ON-OFF, DIN-rail/base mount with 1.89 in. (48 mm) through-the-door padlockable Black/White handle, NEMA / UL Type 4/4X, 5.31 in. (135 mm) shaft included, 7.37 in. (187.2 mm) maximum panel depth, UL 60947-1 / UL 60947-4-1, IEC 60947-3.
Electrical Characteristics
ELECTRICAL DATA UL
| UL Standard | UL 60947-1 & UL 60947-4-1 |
|---|---|
| UL File Document | E123623 |
| Frame Size | A |
| UL Rated Insulation Voltage (V) | 600 VAC |
| UL Rated Thermal Current (A) | 16 |
| UL Resistive Load Rating (A) | 16 |
| HP (FLA) - 1PH @ 115VAC | 1 (16) |
| HP (FLA) - 1PH @ 240VAC | 3 (17) |
| HP (FLA) - 3PH @ 240VAC | 5 (15.2) |
| HP (FLA) - 3PH @ 480VAC | 10 (11) |
| HP (FLA) - 3PH @ 600VAC | 15 (17) |
| UL Operating Temperature (°C) | -5°C to +40°C |
| UL Operating Temperature (°F) | 23F to +104F |
ELECTRICAL DATA IEC
| Standard | IEC 60947-3 |
|---|---|
| CAT 1 / Voltage (V) | 415V |
| CAT 1 / Category of operation | AC-23A |
| CAT 1 / Rated current Ie (A) | 16 A |
| Protection degree | Type 4/4X |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Tightening Torque +5%. -10% (nM) | 0.5-1.5 |
|---|
CONNECTION CAPACITY UL
| Wire range flange (AWG) | #6 - #16 |
|---|
Environmental Ratings
| Operating Temperature Range | -5°C to +40°C |
|---|---|
| Storage Temperature Range | -25ºC a 55ºC |
| IP Rating | IP65 |
| NEMA / UL Type Rating | Type 4/4X |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 68.5 |
|---|---|
| Height (mm) | 35.5 |
| Depth (mm) | 129.5 |
| Weight (Kg) | 0.141 |
DIMENSIONS (inch)
| Width (in) | 2.7 |
|---|---|
| Height (in) | 1.4 |
| Depth (in) | 5.1 |
| Weight (lbs) | 0.31 |
