Fusible Disconnect Switches

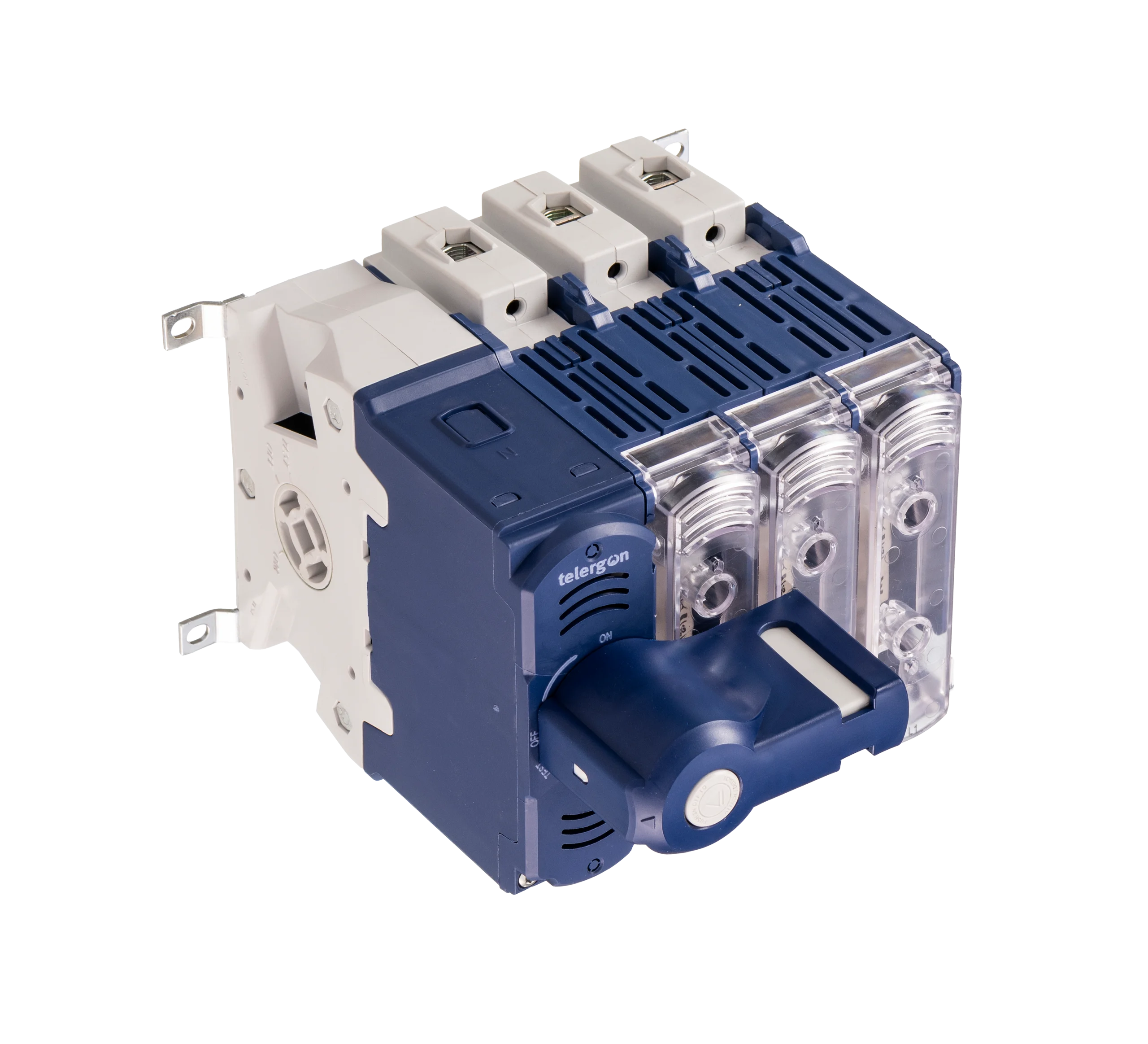

M3-00303PBJ300L
| Rated Current (A) | 30 |
|---|---|
| Rated Voltage | 600Vac |
| Poles | 3P |
| Configuration | ON-OFF |
Description
M3 Fusible disconnect, 30A, 3-pole, 600 VAC, Class J fuse, front operation, panel mount, 200 kA SCCR, UL 98, CSA C22.2 No. 4, IEC 60947-3
Electrical Characteristics
ELECTRICAL DATA UL
| UL Standard | UL98 |
|---|---|
| UL File Document | E363652 |
| Frame Size | B |
| UL Rated Insulation Voltage (V) | 600 VAC |
| UL Resistive Load Rating (A) | 30 |
| HP (FLA) - 3PH @ 240VAC | 7.5/22 |
| HP (FLA) - 3PH @ 480VAC | 15/21 |
| HP (FLA) - 3PH @ 600VAC | 20/22 |
| UL Operating Temperature (°C) | -20°C to +50°C |
| UL Operating Temperature (°F) | -4F to +122F |
| Fuse Class | Class J |
| Fuse Size | 30 A |
ELECTRICAL DATA IEC
| Standard | IEC 60947-3 |
|---|---|
| Type of fuse | Class J |
Mechanical Characteristics
CONNECTION CAPACITY UL
| Wire range flange (AWG) | #10-#2 |
|---|
Environmental Ratings
| Operating Temperature Range | -15°C to +50°C |
|---|---|
| Storage Temperature Range | -40°C to +70°C |
| IP Rating | IP65 |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 153 |
|---|---|
| Height (mm) | 115 |
| Depth (mm) | 115 |
| Weight (Kg) | 0.85 |
DIMENSIONS (inch)
| Width (in) | 6.02 |
|---|---|
| Height (in) | 4.53 |
| Depth (in) | 4.53 |
| Weight (lbs) | 1.87 |
