DC Compact Disconnect Switches

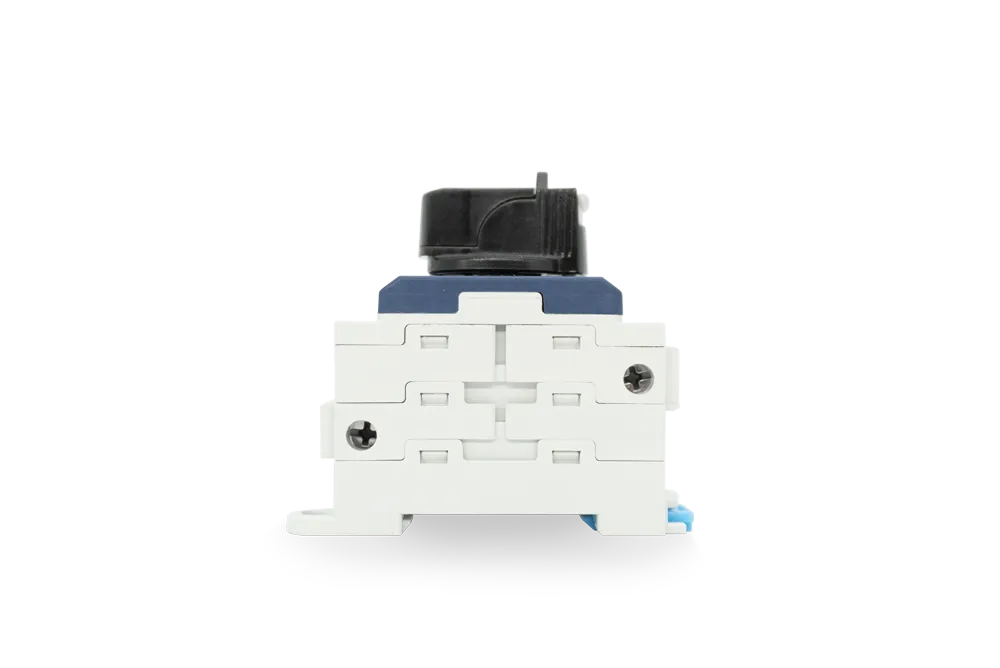

F7-00302PRDB
| Rated Current (A) | 30 |
|---|---|
| Rated Voltage | 1000VDC |
| Poles | 2P |
| Configuration | ON-OFF |
Description
F7 Series DC multi-string Disconnect, 30A at 1000 VDC UL 508i, 2P (1-string), din rail, lockable handle, ON-OFF, 1500 VDC Ui, 8 kV Uimp, IP66 for applicable panel/door-mounted configurations, UL 508i File E362647, IEC/EN 60947-3
Electrical Characteristics
ELECTRICAL DATA UL
| UL Standard | UL508i |
|---|---|
| UL File Document | E362647 |
| UL Rated Insulation Voltage (V) | 1000 Vdc |
| UL Rated Thermal Current (A) | 55 |
| UL Resistive Load Rating (A) | 30 |
| UL Operating Temperature (°C) | -40°C to +70°C |
| UL Operating Temperature (°F) | -40°F to +158°F |
ELECTRICAL DATA IEC
| Standard | IEC 60947-3 |
|---|---|
| CAT 1 / Voltage (V) | 1000V DC |
| CAT 1 / Category of operation | DC-PV2 |
| CAT 1 / Rated current Ie (A) | 40 A |
| CAT 2 / Voltage (V) | 1000V DC |
| CAT 2 / Category of operation | DC-PV1 |
| CAT 2 / Rated current Ie (A) | 50 A |
| CAT 3 / Voltage (V) | 1500V DC |
| CAT 3 / Category of operation | DC-PV1 |
| CAT 3 / Rated current Ie (A) | 16 A |
| Protection degree | Type 4/4X |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Tightening Torque +5%. -10% (nM) | 1.2-1.8 |
|---|---|
| Screw type (M) | M4 |
Environmental Ratings
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Storage Temperature Range | -40°C to +85°C |
| IP Rating | IP66 |
| NEMA / UL Type Rating | Type 4/4X |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 45 |
|---|---|
| Height (mm) | 60.2 |
| Depth (mm) | 70 |
DIMENSIONS (inch)
| Width (in) | 1.77 |
|---|---|
| Height (in) | 2.37 |
| Depth (in) | 2.76 |
