AC Changeover Switches

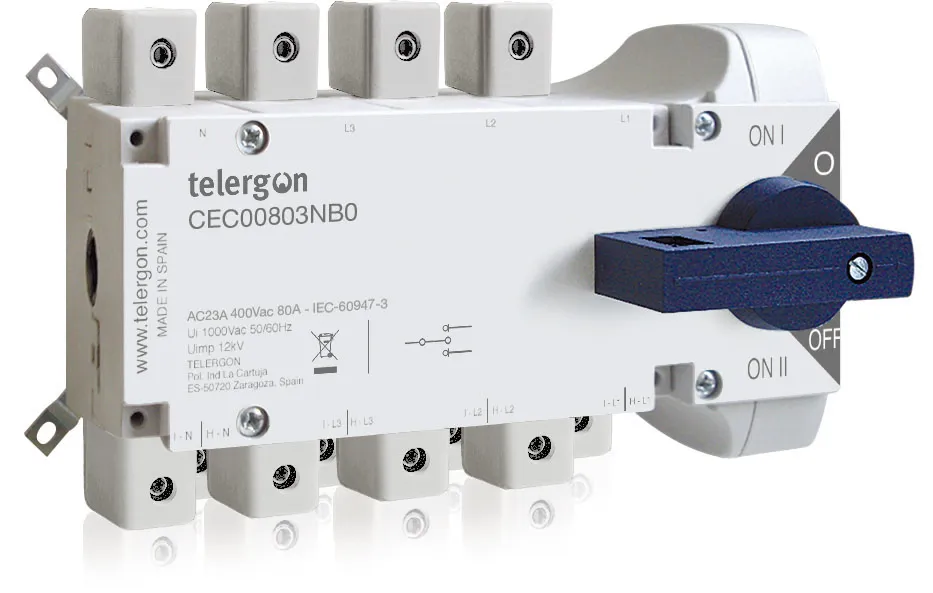

CEC00803NB0
| Rated Current (A) | 80 |
|---|---|
| Rated Voltage | 400VAC |
| Poles | 3P+N |
| Configuration | Changeover |
Description
CEC Series compact AC changeover switch, 80A, 400 VAC, 3P+N, I-O-II, AC-21A / AC-22A / AC-23A, base mount, 1.5 kA Icm, 1 kA Icw (1 s), 1000 V Ui, 8 kV Uimp, IEC 60947-3
Electrical Characteristics
ELECTRICAL DATA IEC
| Standard | IEC 60947-3 |
|---|---|
| CAT 1 / Voltage (V) | 400V |
| CAT 1 / Category of operation | AC-23A |
| CAT 1 / Rated current Ie (A) | 80 A |
| CAT 2 / Voltage (V) | 400V |
| CAT 2 / Category of operation | AC-22A |
| CAT 2 / Rated current Ie (A) | 80 A |
| CAT 3 / Voltage (V) | 400V |
| CAT 3 / Category of operation | AC-21A |
| CAT 3 / Rated current Ie (A) | 80 A |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Tightening Torque +5%. -10% (nM) | 3 |
|---|---|
| Screw type (M) | M8 |
Environmental Ratings
| Operating Temperature Range | -5°C to +40°C |
|---|---|
| Storage Temperature Range | -25ºC a 55ºC |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 190 |
|---|---|
| Height (mm) | 109 |
| Depth (mm) | 88.7 |
| Weight (Kg) | 1.2 |
DIMENSIONS (inch)
| Width (in) | 7.48 |
|---|---|
| Height (in) | 4.29 |
| Depth (in) | 3.49 |
| Weight (lbs) | 2.65 |
