AC Changeover Switches

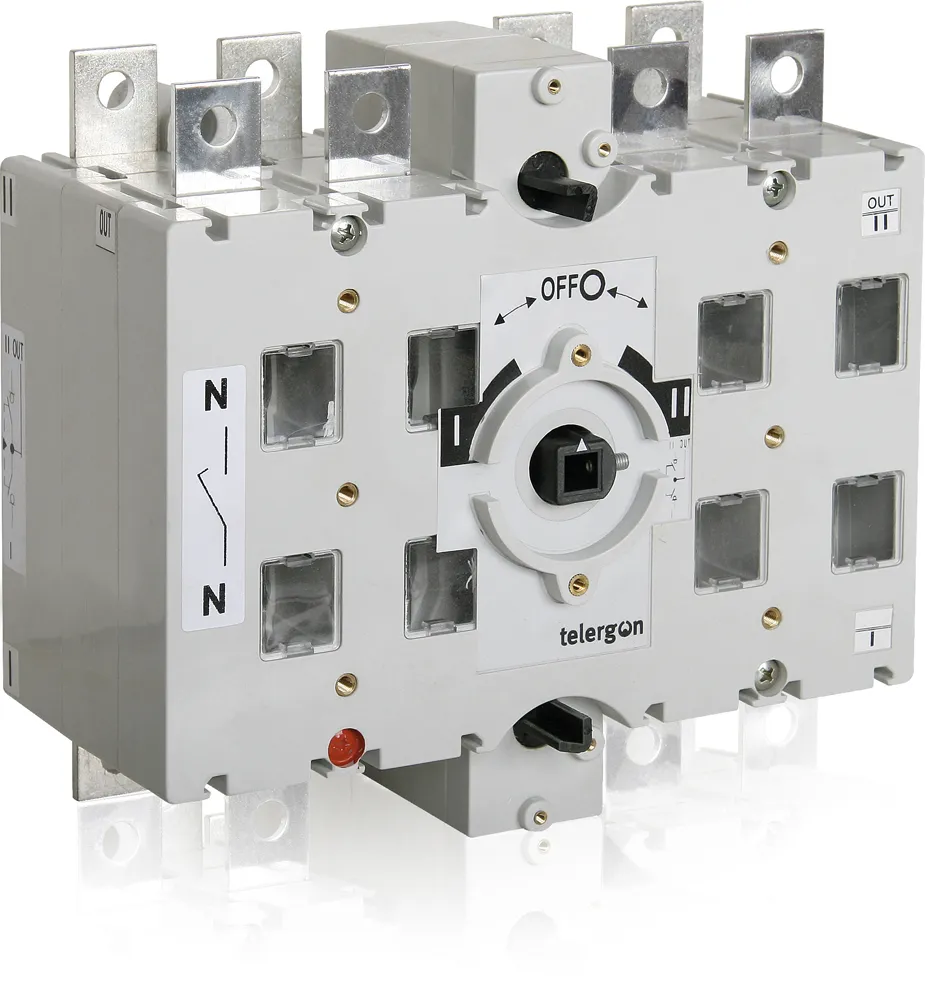

CCF04003PS0
| Rated Current (A) | 400 |
|---|---|
| Rated Voltage | 400VAC |
| Poles | 3P |
| Configuration | Changeover |
Description
CCF Series AC changeover switch, 400A, 400 VAC, 3P, I-O-II, AC-21A / AC-22A, base mount, 12 kA Icm, 8 kA Icw (1 s), 1000 V Ui, 8 kV Uimp, IEC 60947-3
Electrical Characteristics
ELECTRICAL DATA UL
| Frame Size | 1 |
|---|
ELECTRICAL DATA IEC
| Standard | IEC 60947-3 |
|---|---|
| CAT 2 / Voltage (V) | 400V |
| CAT 2 / Category of operation | AC-22A |
| CAT 2 / Rated current Ie (A) | 400 A |
| CAT 3 / Voltage (V) | 400V |
| CAT 3 / Category of operation | AC-21A |
| CAT 3 / Rated current Ie (A) | 400 A |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Busbar (min. thickness / Width) (mm) | 2x5 / 30 |
|---|---|
| Busbar (Max. Width) (mm) | 30 |
| Tightening Torque +5%. -10% (nM) | 24 |
| Screw type (M) | M10 |
Environmental Ratings
| Operating Temperature Range | -5ºC to 40ºC |
|---|---|
| Storage Temperature Range | -25ºC a 55ºC |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 198 |
|---|---|
| Height (mm) | 216 |
| Depth (mm) | 151 |
| Weight (Kg) | 5 |
DIMENSIONS (inch)
| Width (in) | 7.8 |
|---|---|
| Height (in) | 8.5 |
| Depth (in) | 5.94 |
| Weight (lbs) | 11.03 |
