Automatic Transfer Switches

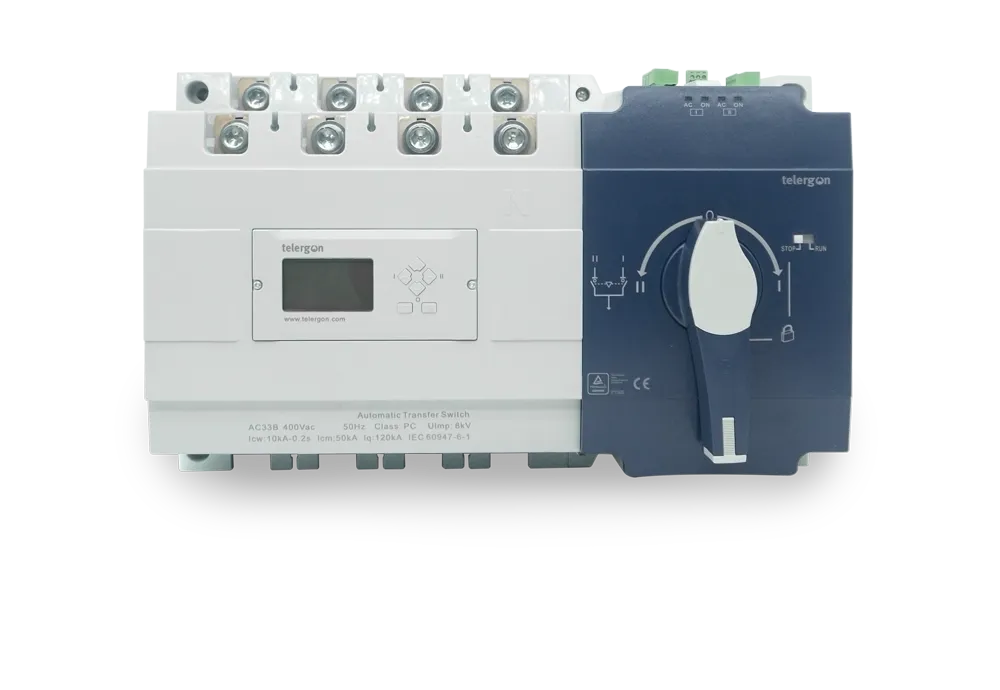

C2-06303PTDDT
| Rated Current (A) | 630 |
|---|---|
| Rated Voltage | 415VAC |
| Poles | 3P |
| Configuration | Automatic & Programmable ATS |
Description
C2 Series ATS, 630A, 415 VAC, 3P, automatic & programmable, AC-33B, 230 VAC control, LCD/HMI programming interface, RS-485 communication, automatic transfer/recovery, 3-phase voltage and frequency monitoring, generator start/stop, fire-linkage input, source-priority setting, 24 VDC auxiliary input, engine exerciser, 690V Ui, 120kA Icc, IEC 60947-6-1
Electrical Characteristics
ELECTRICAL DATA UL
| Frame Size | 2 |
|---|
ELECTRICAL DATA IEC
| Standard | IEC 60947-6-1 |
|---|---|
| CAT 1 / Voltage (V) | 415V |
| CAT 1 / Category of operation | AC-33B |
| CAT 1 / Rated current Ie (A) | 630 A |
| CAT 2 / Voltage (V) | 415V |
| CAT 2 / Category of operation | AC-32B |
| CAT 2 / Rated current Ie (A) | 630 A |
| CAT 3 / Voltage (V) | 415V |
| CAT 3 / Category of operation | AC-31B |
| CAT 3 / Rated current Ie (A) | 630 A |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Busbar (min. thickness / Width) (mm) | 10x40 |
|---|---|
| Busbar (Max. Width) (mm) | 40 |
| Tightening Torque +5%. -10% (nM) | 10 |
| Screw type (M) | M10 |
Environmental Ratings
| Operating Temperature Range | -5ºC to 40ºC |
|---|---|
| Storage Temperature Range | -25ºC a 55ºC |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 430 |
|---|---|
| Height (mm) | 272 |
| Depth (mm) | 226 |
| Weight (Kg) | 22.5 |
DIMENSIONS (inch)
| Width (in) | 16.93 |
|---|---|
| Height (in) | 10.71 |
| Depth (in) | 8.9 |
| Weight (lbs) | 49.61 |
