Automatic Transfer Switches

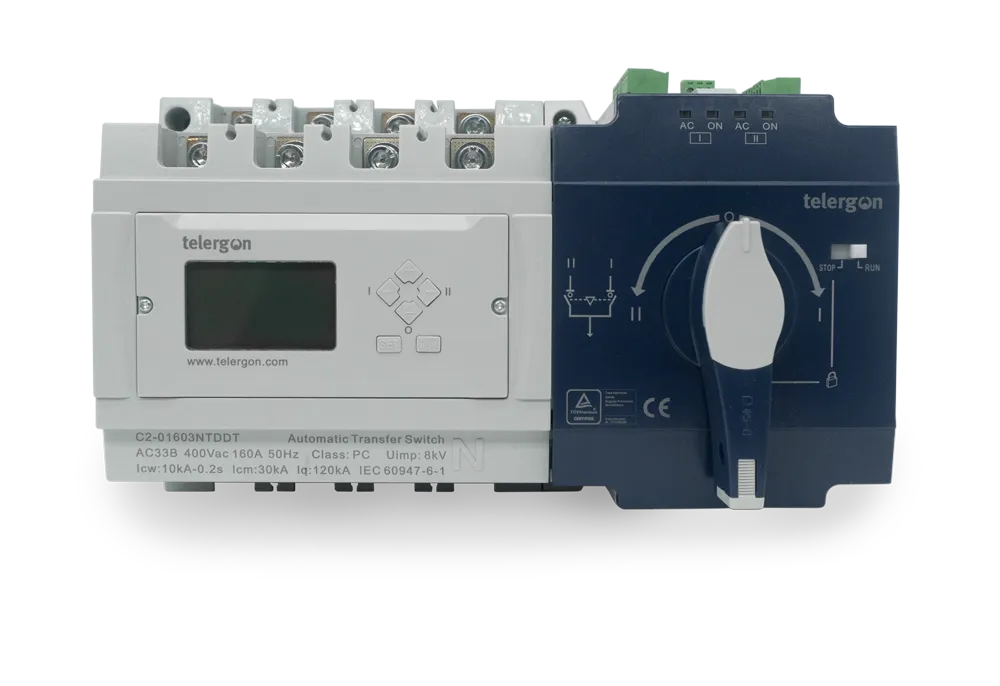

C2-01603NTDDT
| Rated Current (A) | 160 |
|---|---|
| Rated Voltage | 415VAC |
| Poles | 3P+N |
| Configuration | Automatic & Programmable ATS |
Description
C2 Series ATS, 160A, 415 VAC, 3P+N, automatic & programmable, AC-33B, 230 VAC control, LCD/HMI programming interface, RS-485 communication, automatic transfer/recovery, 3-phase voltage and frequency monitoring, generator start/stop, fire-linkage input, source-priority setting, 24 VDC auxiliary input, engine exerciser, 690V Ui, 120kA Icc, IEC 60947-6-1
Electrical Characteristics
ELECTRICAL DATA UL
| Frame Size | 1 |
|---|
ELECTRICAL DATA IEC
| Standard | IEC 60947-6-1 |
|---|---|
| CAT 1 / Voltage (V) | 415V |
| CAT 1 / Category of operation | AC-33B |
| CAT 1 / Rated current Ie (A) | 160 A |
| CAT 2 / Voltage (V) | 415V |
| CAT 2 / Category of operation | AC-32B |
| CAT 2 / Rated current Ie (A) | 160 A |
| CAT 3 / Voltage (V) | 415V |
| CAT 3 / Category of operation | AC-31B |
| CAT 3 / Rated current Ie (A) | 160 A |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Busbar (min. thickness / Width) (mm) | 5x25 |
|---|---|
| Busbar (Max. Width) (mm) | 25 |
| Tightening Torque +5%. -10% (nM) | 6 |
| Screw type (M) | M8 |
Environmental Ratings
| Operating Temperature Range | -5ºC to 40ºC |
|---|---|
| Storage Temperature Range | -25ºC a 55ºC |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 295 |
|---|---|
| Height (mm) | 175 |
| Depth (mm) | 176 |
| Weight (Kg) | 9 |
DIMENSIONS (inch)
| Width (in) | 11.61 |
|---|---|
| Height (in) | 6.89 |
| Depth (in) | 6.93 |
| Weight (lbs) | 19.85 |
