Automatic Transfer Switches

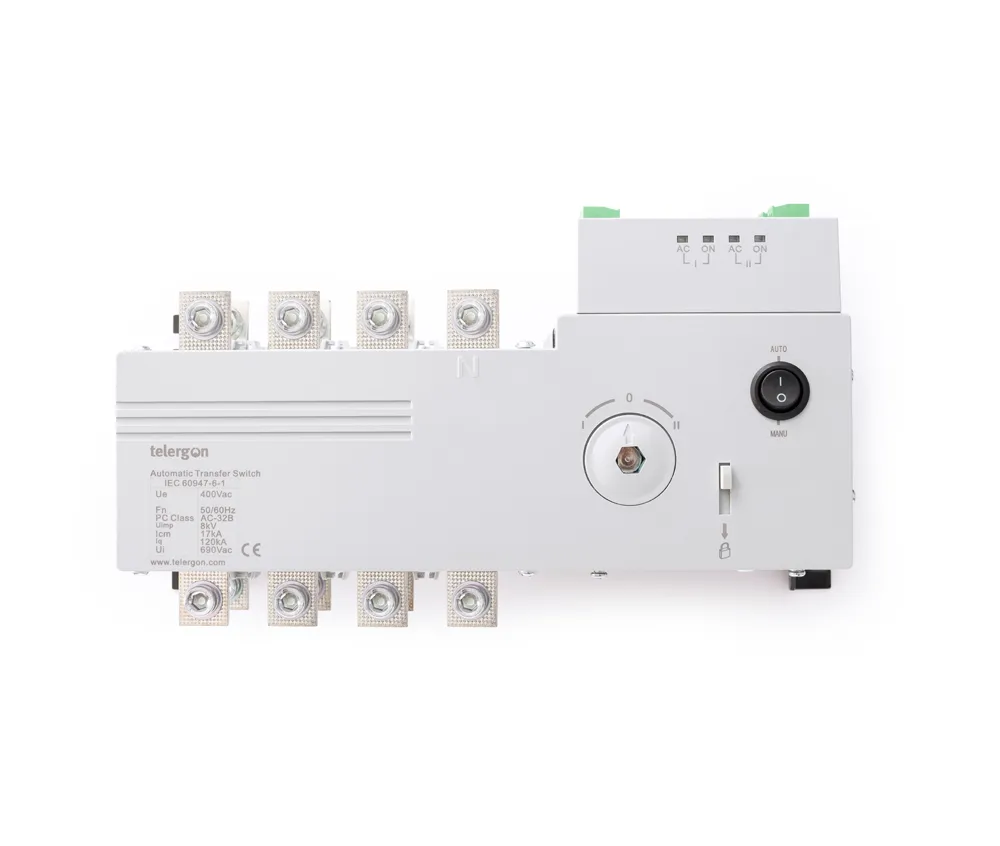

C1-01603PSMGB
| Rated Current (A) | 160 |
|---|---|
| Rated Voltage | 415VAC |
| Poles | 3P |
| Configuration | Remote Operation |
Description
C1 Series ATS, 160A, 415 VAC, 3P, remote operation, AC-32B, 230 VAC control, remote control via potential-free contacts, source and switch-position LED indication, 1NO auxiliary contacts for sources I and II, 690V Ui, 120kA Icc, IEC 60947-6-1
Electrical Characteristics
ELECTRICAL DATA IEC
| Standard | IEC 60947-6-1 |
|---|---|
| CAT 2 / Voltage (V) | 415V |
| CAT 2 / Category of operation | AC-32B |
| CAT 2 / Rated current Ie (A) | 160 A |
| CAT 3 / Voltage (V) | 415V |
| CAT 3 / Category of operation | AC-31B |
| CAT 3 / Rated current Ie (A) | 160 A |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Tightening Torque +5%. -10% (nM) | 6 |
|---|---|
| Screw type (M) | M8 |
Environmental Ratings
| Operating Temperature Range | -5ºC to 40ºC |
|---|---|
| Storage Temperature Range | -25ºC a 55ºC |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 298 |
|---|---|
| Height (mm) | 161 |
| Depth (mm) | 164 |
| Weight (Kg) | 8.5 |
DIMENSIONS (inch)
| Width (in) | 11.85 |
|---|---|
| Height (in) | 6.34 |
| Depth (in) | 6.46 |
| Weight (lbs) | 18.74 |
