Automatic Transfer Switches

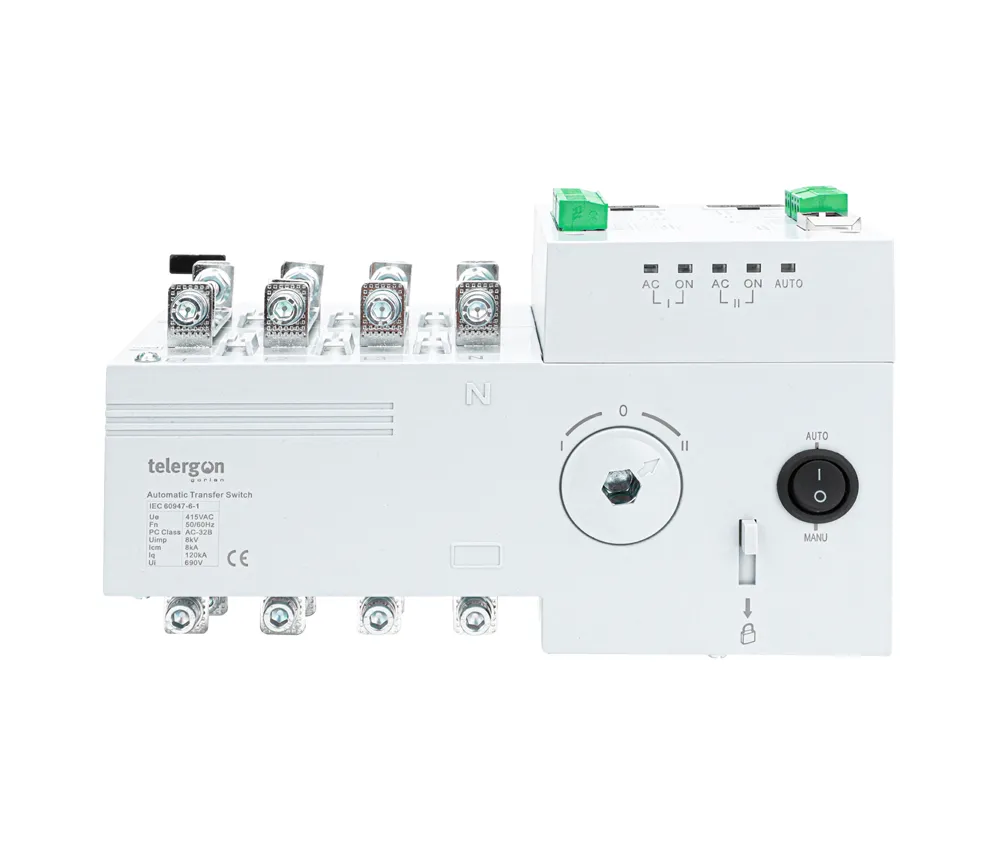

C1-00633NSMCB
| Rated Current (A) | 63 |
|---|---|
| Rated Voltage | 415VAC |
| Poles | 3P+N |
| Configuration | Automatic Transfer |
Description
C1 Series ATS, 63A, 415 VAC, 3P+N, automatic transfer, AC-32B, 230 VAC control, automatic transfer/recovery, phase monitoring, generator start/stop, fire-linkage input, source-priority setting, 24 VDC auxiliary input, optional LCD display, 690V Ui, 120kA Icc, IEC 60947-6-1
Electrical Characteristics
ELECTRICAL DATA IEC
| Standard | IEC 60947-6-1 |
|---|---|
| CAT 2 / Voltage (V) | 415V |
| CAT 2 / Category of operation | AC-32B |
| CAT 2 / Rated current Ie (A) | 63 A |
| CAT 3 / Voltage (V) | 415V |
| CAT 3 / Category of operation | AC-31B |
| CAT 3 / Rated current Ie (A) | 63 A |
Mechanical Characteristics
CONNECTION CAPACITY IEC
| Tightening Torque +5%. -10% (nM) | 3 |
|---|---|
| Screw type (M) | M6 |
Environmental Ratings
| Operating Temperature Range | -5ºC to 40ºC |
|---|---|
| Storage Temperature Range | -25ºC a 55ºC |
Dimensions & Weight
DIMENSIONS (mm)
| Width (mm) | 243 |
|---|---|
| Height (mm) | 129 |
| Depth (mm) | 125 |
| Weight (Kg) | 3.8 |
DIMENSIONS (inch)
| Width (in) | 9.57 |
|---|---|
| Height (in) | 5.08 |
| Depth (in) | 4.92 |
| Weight (lbs) | 8.38 |
